Stratus P410 10,000lb 4 Post Vehicle Storage Lift
SAE-P410 4 Post Lift by Stratus
Your garage is a cluttered mess, and parking your cars is a nightmare. It's time to stop tripping over tools and bumping into your vehicles. You deserve a garage that's actually usable. Imagine being able to easily access all your stuff without having to play human Tetris. It's time to take control of your space and stop letting your cars dictate your life.
The Stratus SAE-P410 4 Post Storage Car Lift is the answer to your prayers. With an eye-watering lifting capacity of 10,000 lbs and a maximum lifting height of 83 1/16 inches, you can store multiple vehicles effortlessly. The manual release mechanism ensures safe and controlled operation, while the included jack and drip trays keep your garage clean and organized. Reclaim your garage space and enjoy the freedom to move around without obstacles with the P410.
4 Post Lift SAE-P410 Specification:
Capacity: 10,000 lbs
Min Lifting Height: 5-1/2″
Max Lifting Height: 83-1/16″
Lifting Time: ~90 seconds
Clearance Height: 77-9/16″
Overall Height: 97-5/16″
Overall Width: 135-13/16″
Overall Length (with ramps): 234-1/8″
Overall Length (without ramps): 202-3/8″
Width Between Columns: 112-3/16″
Drive Thru Clearance: 79-3/4″
Runway Width: 21-1/16″
Runway Length: 192-15/16″
Width Between Runways: 37-5/8″
Motor: 3 HP, 220V, 60Hz, 1 PH
Hydraulic Oil: AW32 or AW46
Circuit Breaker: 20A
Ship Weight: 2,646 lbs
Shipping Dimensions: 198″ L x 25″ W x 27″ H
SAE-P410 4 Post Lift Special Features:

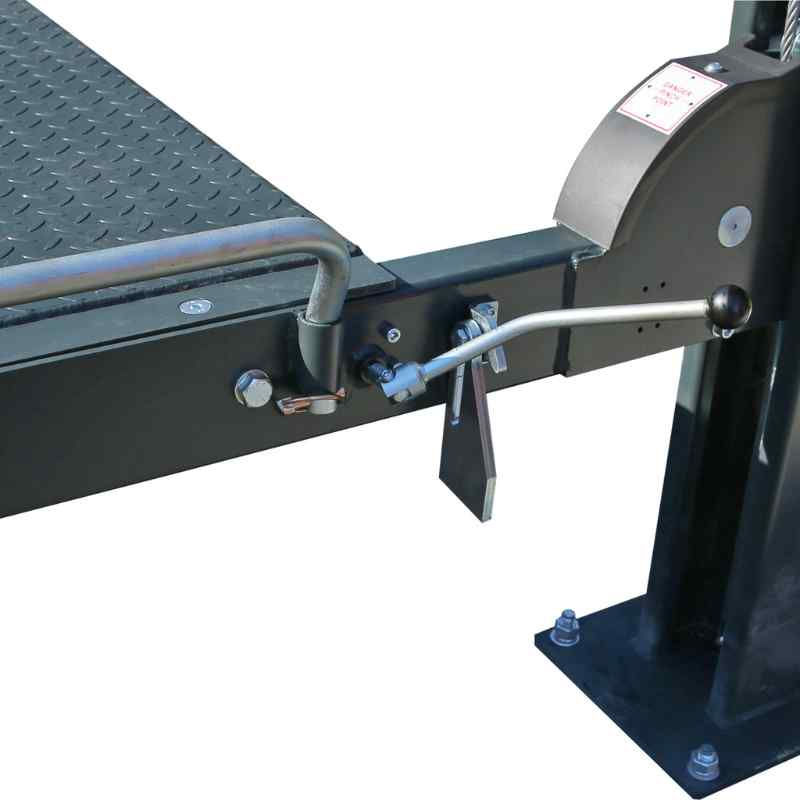

Manual safety lock release
Hassle-free lock mechanism release system
Automatic mechanical safety locks during ascent
Imbalance protection for safe, reliable operation
Self-lubricating pulleys with pre-tensioned cables
Proof tested to 115% dynamic and 150% static rated capacity
Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004)
Stratus SAE-P410 Documentation:
Stratus SAE-P410 4 Post Lift Product Manual
Stratus SAE-P410 4 Post Lift Installation Instruction
Standard Accessories (Included)
2pcs ramps
8 drip trays
1 jack tray
Optional Add-On Accessories (Sold Separately)
4 caster kits
Sliding bridge jack
Aluminum ramps
