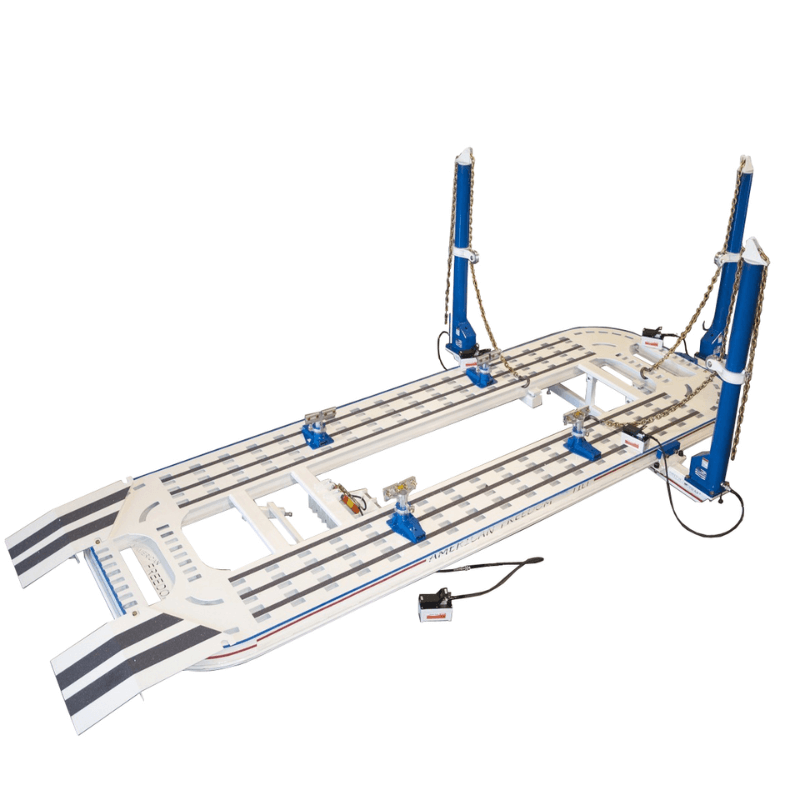

Signature American Freedom 22" Tilt 3 Tower Frame Machine
Signature AF Tilt 3 Tower Frame Machine – Heavy-Duty Auto Body Repair Equipment
The Signature AF Tilt 3 Tower Frame Machine is proudly made in the U.S.A. and engineered for precision, safety, and productivity in automotive repair. Built with the trusted American Freedom Tilt frame design, it offers technicians a familiar and easy-to-use platform for frame straightening and collision repair. Its rugged build ensures long-lasting durability for busy auto body shops.
Featuring 22-foot treadways and an 88-inch total bed width, this 3-tower frame machine can accommodate a wide range of vehicles. The tilt functionality allows easy drive-on and drive-off access, improving workflow efficiency. With its reliable 10-ton hydraulic system and up to 12,000 lbs lift capacity (with optional dual ram upgrade), it is ready for even the toughest repair jobs.
Designed for versatility, the AF 9014223T supports multiple tower configurations, making it adaptable to different shop setups. Whether you are working on small cars, full-size trucks, or larger vehicles, this frame machine ensures precision repairs every time. Increase your shop’s throughput and customer satisfaction with this high-performance, American-made solution.
3 Tower Frame Machine 9014223T Tilt 22" Specification
Length of bed (top): 20 ft. (610 cm)
Length with towers extended: 24 ft 6 in. (750 cm)
Width of bed: 88 in. (224 cm)
Width with towers extended: 11 ft 4 in. (348 cm)
Width of treadway: 26.25 in. (67 cm)
Width between treadways: 35.50 in. (98 cm)
Overall height: 9 ft 4 in. (289 cm)
Working height: 21 in. (54 cm)
Hydraulics: 10 ton
Power required: Air – 100 psi
Optional tower configurations: 2, 3, or 4 towers
Lift capacity: 9,000 lbs (12,000 lbs with dual ram upgrade)
AF Tilt 3 Tower Frame Machine Special Features
Proudly made in the U.S.A. for unmatched durability and reliability
3-tower configuration for optimal pulling angles and repair versatility
Tilt function for easier vehicle loading and unloading
22-foot treadways fit a wide variety of vehicle sizes
Heavy-duty 10-ton hydraulic system for powerful pulls
Adjustable tower configurations to suit your shop’s needs
Capable of lifting up to 12,000 lbs with optional upgrade
Familiar frame machine design for quick technician training
Built to handle small cars to large trucks with ease
Designed to improve productivity and repair accuracy
Warranty: 2 Years (Machine & Hydraulics)
