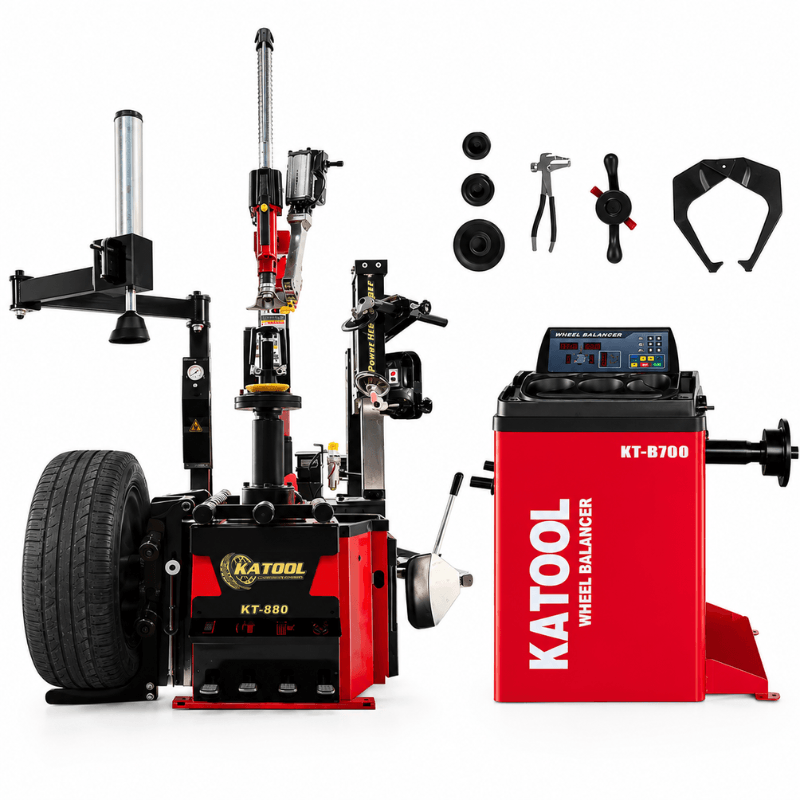

KATOOL KT-T880 Center Post Tire Changer + KT-B700 Wheel Balancer Combo
KT-T880/KT-B700 Combo
Complete your tire service bay with the KATOOL KT-T880 Center Post Tire Changer and KT-B700 Wheel Balancer Combo. Designed for professional automotive repair shops, dealerships, and high-volume tire centers, this package combines a fully automatic center-post tire changer with a precision digital wheel balancer to provide fast, efficient, and accurate tire service. From tire mounting and demounting to final wheel balancing, this combo helps technicians complete jobs with greater speed and confidence.
The KT-T880 Tire Changer features a fully automatic pneumatic center-post design that provides excellent wheel stability while helping reduce the risk of rim damage. Built with a reinforced steel frame and ergonomic foot pedal controls, it accommodates a wide variety of passenger vehicle, performance, and light truck tires with minimal operator effort.
Paired with the KT-B700 Wheel Balancer, this system delivers precise balancing with ±1 gram accuracy and a fast 7-second measuring cycle. Its intuitive controls and reliable digital balancing technology help improve ride quality while increasing shop productivity, making this combo an ideal solution for demanding commercial tire service operations.
Tire Changer KT-T880 Specifications
Brand: Katool
Model: KT-T880
Product Type: Fully Automatic Tire Changer
Operation Type: Pneumatic Automatic
Design: Center Post Tire Changer
Maximum Tire Diameter: 47" / 1200 mm
Maximum Wheel Width: 15" / 380 mm
Wheel Compatibility: 13" – 26"
Power Supply: 110V, 1 Phase
Motor Power: 2.0 HP / 1.5 kW
Air Pressure Requirement: 80–120 PSI
Air Pressure Range: 0.8–1.0 MPa
Net Weight: Approximately 816 lbs. / 370 kg
Shipping Dimensions: 45" × 39" × 78"
Warranty: 1-Year Parts Warranty / 3-Year Structural Warranty
Wheel Balancer KT-B700 Specification:
Wheel Width: 3"-12"
Wheel Diameter: <30"
Balancing Speed: 180rpm
Power Supply: 120V 1PH
Motor Power: 0.25KW
Rim Center Hole Dia.: <135mm/5.31"
Balancing Accuracy: ±1g
Measuring Time: 7S
Shipping Dimensions: 39"L x 26"W x 31" H - 209lbs
KT-T880 Tire Changer Special Features
Fully automatic pneumatic tire changing operation
Center-post design improves wheel stability during service

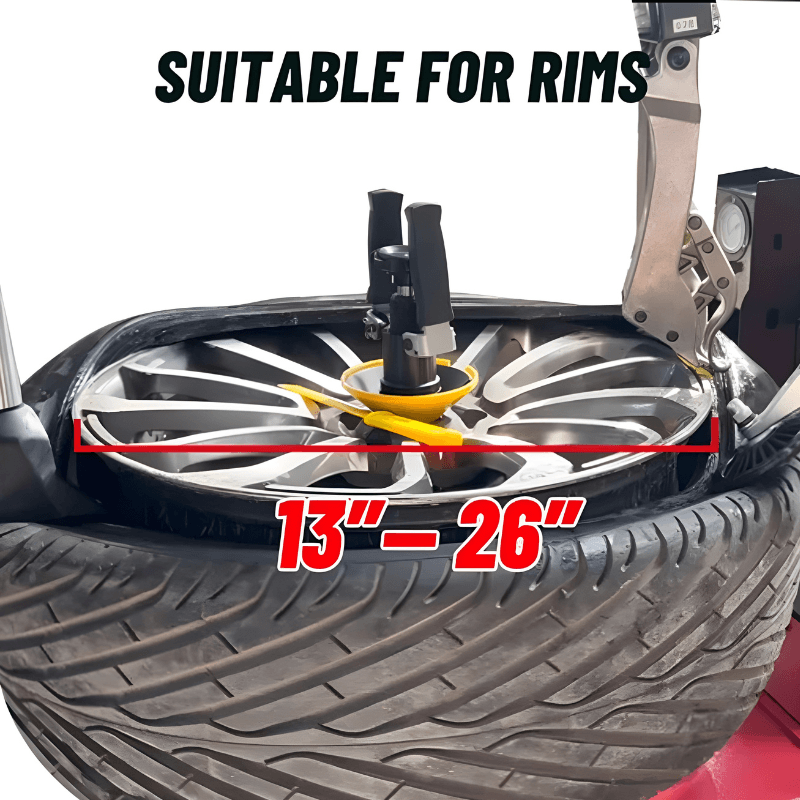

Handles wheels from 13" to 26"
Supports tire diameters up to 47"
Designed for standard, low-profile, and performance tires
Heavy-duty steel construction for long-term durability
Precision mount and demount head helps protect rims
Foot pedal controls provide convenient hands-free operation
Reduces technician effort during tire service
Built for professional shop workloads
Suitable for high-volume tire mounting and removal
KT-B700 from Katool Special Features:
The body uses 3mm-thick steel with high strength, solid welding and low vibration
All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision
Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life
The 36mm shaft thread is made by quenching treatment to offer high strength
The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic
Various balance mode for different types of rims to provide more precision
Built-in fault diagnosis and self-calibration program with double side calibration. No preset parameters so the users can operate with ease
Unit selection (Ounce/Gram, MM/Inch)
High quality integration power board, working stable and reliable.
Optional wheel guard
Longer shaft also compatible with wider wheels
Katool Warranty: One-year (12 months) warranty on all parts and against all product defects free of charge to our customers, on all equipment.
KATOOL KT-T880 + KT-B700 Manual
Katool KT-B700 Wheel Balancer Operations Manual
