Atlas PRO14KCFA-EXT-KIT 14,000 lb Extended 4-Post Lift w/ Alignment Kit Combo
PRO14KCFA-EXT-KIT 14,000 lb. Extended 4-Post Alignment Lift Combo
Handle larger vehicles and perform professional wheel alignments with the Atlas PRO14KCFA-EXT-KIT. This heavy-duty commercial package combines the Atlas PRO14KCF-EXT Extended 4-Post Lift with a complete alignment kit, making it an excellent solution for automotive repair shops, fleet maintenance facilities, and commercial service centers. With a 14,000 lb. lifting capacity, extra-long runways, and an extra-tall, extra-wide design, this lift is built to accommodate long-wheelbase trucks, vans, SUVs, and commercial vehicles.
Designed for daily commercial use, the PRO14KCF-EXT features an under-runway hydraulic cylinder with a high-strength cable lifting system for smooth, reliable operation. The lift includes an air-operated single-point lock release, double-lock safety system, and integrated rolling bridge jack tracks for added versatility. The included alignment package features heavy-duty turntables, slip plates, spacers, and alignment ramps, allowing technicians to perform accurate wheel alignments without additional accessories. This Will Call Only package delivers the durability, performance, and functionality required for demanding professional service environments.
PRO14KC Combo Specification
Brand: Atlas
Model: PRO14KCFA-EXT-KIT
Product Type: Extended 4-Post Alignment Lift Combo
Lift Capacity: 14,000 lbs.
Lift Style: Commercial Grade 4-Post Lift
Configuration: Extra Tall & Extra Wide with 24" Extended Length
Overall Length (With Ramps): 277"
Runway Length: 229"
Overall Width (With Motor): 141-7/16"
Width Between Columns: 114-13/16"
Drive-Thru Clearance: 100"
Column Height: 89"
Runway Width: 20"
Width Between Runways: 42-1/2" – 46-1/2"
Outside Runway Width: 62-1/2" – 66-1/2"
Length Between Columns: 213-3/4"
Maximum Lifting Height: 68-1/2"
Clearance Under Runways: 61-1/2"
Air Requirement: 85–115 PSI (External Air Supply Required)
Electrical Requirement: 220V, Single Phase, 30 Amp Breaker Recommended
Hydraulic Oil Requirement: 3–5 Gallons AW32/AW46 (Not Included)
Minimum Concrete Requirement: 6" Thick, 3,000 PSI
Shipping Weight: 3,900 lbs.
Warranty: 5-Year Structural / 2-Year Hydraulic (Parts Only)
Combo Special Features
14,000 lb. commercial lifting capacity
Extra-tall, extra-wide, and 24" extended design
Heavy-duty commercial-grade construction
Air-operated single-point lock release
Double-lock safety system
Lock ladder safety design
High-strength cable lifting system
Under-runway hydraulic cylinder design
Tracks for compatible rolling bridge jacks
Powder-coated finish for long-lasting durability
Includes heavy-duty alignment turntables
Includes slip plates, spacers, and alignment ramps
Includes steel approach ramps
Includes one pair of rubber wheel chocks
Mounting hardware included
Ideal for professional wheel alignment and vehicle service
What's Included
Atlas PRO14KCF-EXT 14,000 lb. Extended 4-Post Lift
Complete Alignment Kit

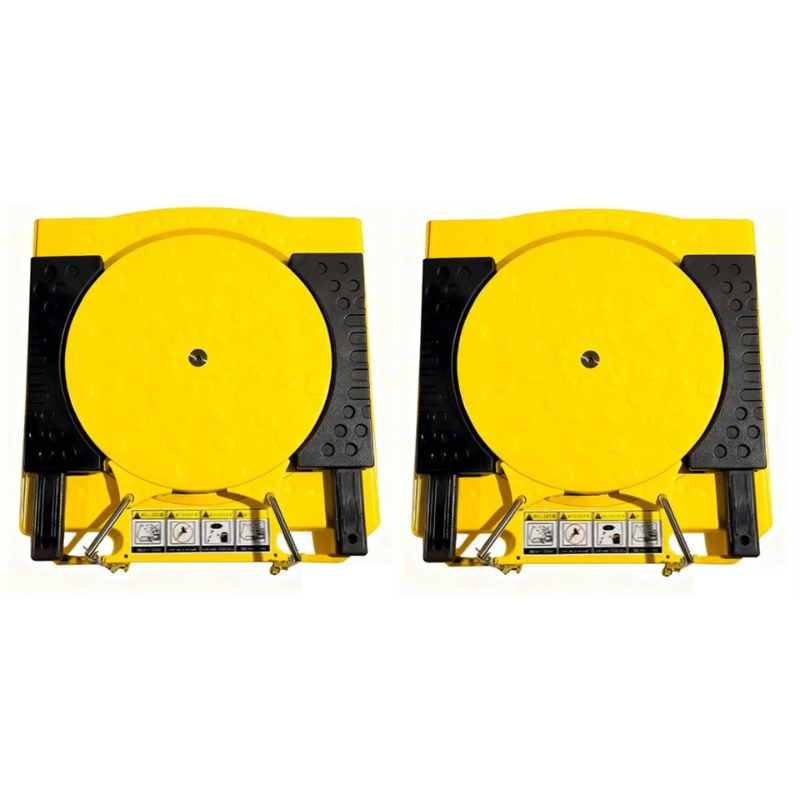

Heavy-Duty Turntables

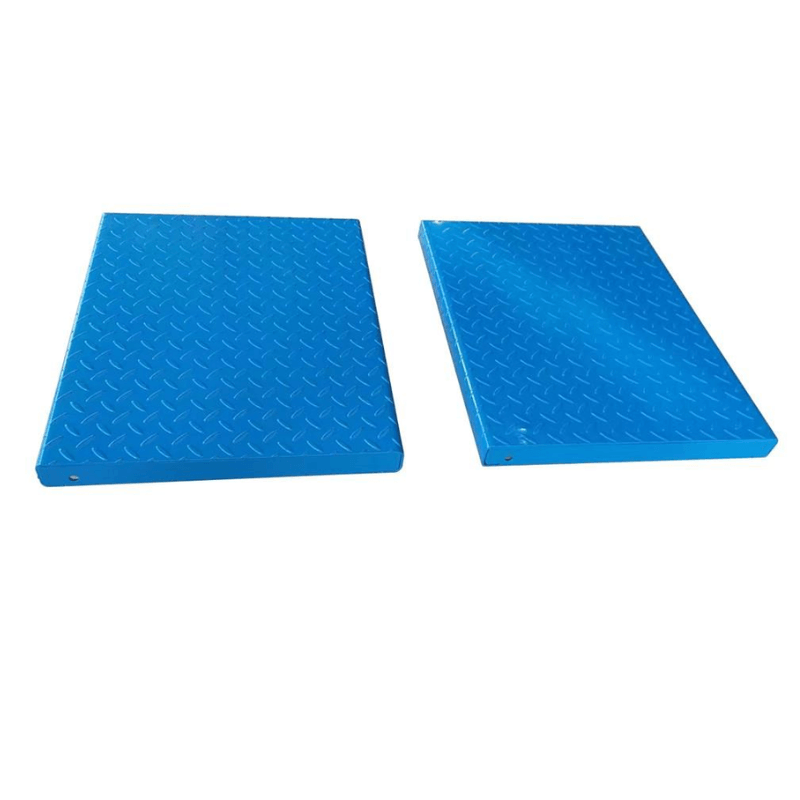

Slip Plates
Alignment Spacers
Alignment Ramps
Steel Approach Ramps
One (1) Pair of Rubber Wheel Chocks
Mounting Hardware
