Atlas PRO14KCFA-EXT-COMBO 14000lb Includes Alignment Kit & (2) RJ8
PRO14KCFA-EXT-COMBO Alignment Kit
Equip your shop with a complete lifting and alignment solution designed for heavy-duty commercial service. The Atlas PRO14KCFA-EXT-COMBO combines the Atlas PRO14KCF-EXT Extended 4-Post Lift, a complete alignment kit, and two Atlas RJ8A 8,000 lb. rolling bridge jacks to provide everything needed for wheel alignments, tire service, suspension work, brake repairs, and general vehicle maintenance. With a 14,000 lb. lifting capacity, extra-long runways, and an extra-tall, extra-wide design, this package is built to handle passenger vehicles, long-wheelbase trucks, vans, SUVs, and commercial vehicles.
Designed for demanding commercial environments, the PRO14KCF-EXT features a high-strength cable lifting system with an under-runway hydraulic cylinder for smooth, dependable operation. The lift includes an air-operated single-point lock release, lock ladder design, and double-lock safety system for reliable performance throughout the workday. Integrated bridge jack tracks allow the included dual RJ8A rolling bridge jacks to move easily between the runways, making wheel-free service fast and efficient.
The included alignment package features heavy-duty turntables, slip plates, spacers, and alignment ramps, allowing technicians to perform accurate wheel alignments immediately after installation. Combined with the two air/hydraulic rolling bridge jacks and truck adapter sets.
Combo Specification
Atlas PRO14KCF-EXT Lift
Brand: Atlas
Model: PRO14KCFA-EXT-COMBO
Product Type: Extended 4-Post Alignment Lift & Dual Rolling Jack Combo
Lift Capacity: 14,000 lbs.
Lift Style: Heavy-Duty Commercial Grade
Configuration: Extra Tall, Extra Wide, 24" Extended Length
Overall Length (With Ramps): 277"
Runway Length: 229"
Overall Width (With Motor): 141-1/2"
Width Between Columns: 114-3/4"
Drive-Thru Clearance: 100"
Column Height: 89"
Runway Width: 20"
Width Between Runways: 42-1/2" – 46-1/2"
Outside Runway Width: 62-1/2" – 66-1/2"
Length Between Columns: 213-3/4"

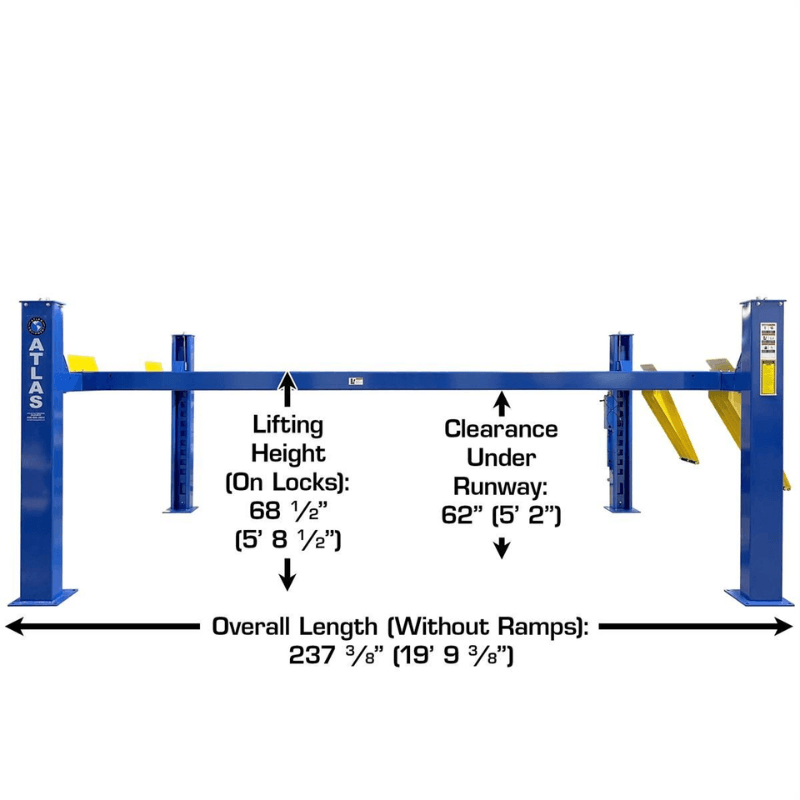

Maximum Lifting Height: 68-1/2"
Clearance Under Runways: 61-1/2"
Air Requirement: 85–115 PSI (External Air Supply Required)
Electrical Requirement: 220V, Single Phase, 30 Amp Breaker Recommended
Hydraulic Oil Requirement: 3–5 Gallons AW32/AW46 (Not Included)

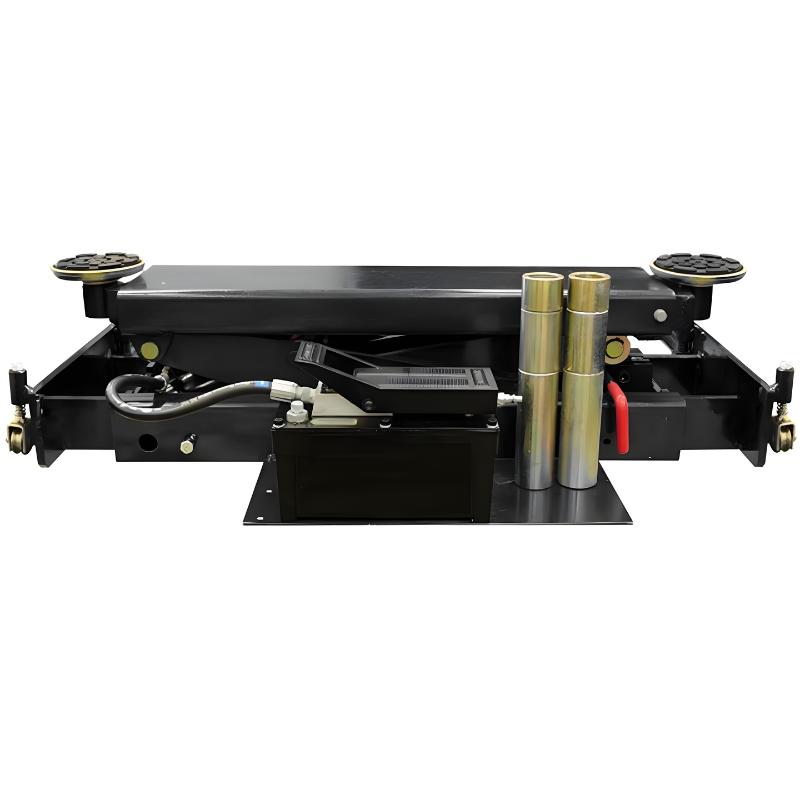

Atlas RJ8A Rolling Bridge Jacks (2 Included)
Quantity: Two (2)
Capacity (Each): 8,000 lbs.
Operation: Air/Hydraulic
Minimum Width: 40"
Maximum Width: 66-1/2"
Maximum Lifting Height (With Adapters): 30"
Adapter Heights: Two 2.5" Adapters & Two 5" Adapters Per Jack
Additional Information
Combined Shipping Weight: 4,600 lbs.
Warranty: 5-Year Structural / 2-Year Hydraulic (Parts Only)
Availability: Will Call Only
Combo Special Features
Atlas PRO14KCF-EXT Lift
14,000 lb. commercial lifting capacity
Extra-tall, extra-wide, and 24" extended design
Heavy-duty commercial-grade construction
Air-operated single-point lock release
Double-lock safety system
Lock ladder safety design
High-strength cable lifting system
Under-runway hydraulic cylinder
Rolling bridge jack tracks built into the runways
Steel approach ramps included
One pair of rubber wheel chocks included
Mounting hardware included
Alignment Package
Heavy-duty alignment turntables
Slip plates included
Alignment spacers included
Alignment ramps included
Ready for professional wheel alignment service
Atlas RJ8A Rolling Bridge Jacks
Two 8,000 lb. air/hydraulic rolling bridge jacks included
Smooth rolling operation between lift runways
Adjustable width for multiple vehicle sizes
Includes four-piece truck adapter set with each jack
Ideal for wheel-free brake, suspension, and tire service
What's Included
Atlas PRO14KCF-EXT 14,000 lb. Extended 4-Post Lift
Complete Alignment Kit
Heavy-Duty Turntables
Slip Plates
Alignment Spacers
Alignment Ramps
Two (2) Atlas RJ8A 8,000 lb. Air/Hydraulic Rolling Bridge Jacks
Two (2) Four-Piece Truck Adapter Sets
Steel Approach Ramps
One (1) Pair of Rubber Wheel Chocks
