Atlas Platinum PTC600 Tire Changer and PWB90XL Wheel Balancer Combo Package
Platinum PTC600 Tire Changer & PWB90XL Wheel Balancer Combo
The Atlas Platinum PTC600 Tire Changer and PWB90XL Wheel Balancer Combo Package delivers a complete professional-grade solution for shops looking to upgrade their tire service equipment. Engineered with advanced Italian components, the PTC600 features a tilt-back design, pneumatic assist arm, air-operated jaws, and a built-in Beadblaster to make mounting and demounting tires faster and safer. Paired with the PWB90XL’s 3D data entry, touchless sonar, and laser-guided weight placement, this combo ensures accuracy, efficiency, and reduced operator error.
The PTC600 Tire Changer is equipped with a powerful 110V electric turntable, 29-inch clamping capability, and an anodized aluminum bead breaker cylinder that ensures ease of use and exceptional durability. The assist arm and bead roller work in tandem to help effortlessly mount and demount tires, while the integrated bead blast system guarantees a thorough job every time. On the balancing side, the PWB90XL is built with advanced features like the Optimatch software for balancing optimization, laser-guided weight placement, and super automatic 3D data entry. This wheel balancer streamlines the process with a self-calibrating system and offers both static and dynamic balancing modes, ensuring flawless results every time.
ATEAP-PTC600 Specifications:
External Locking Rim Diameter: 10"–27"
Internal Locking Rim Diameter: 12"–29"
Maximum Tire Diameter: 43"
Maximum Wheel Width: 16"
Turntable Speed: 7 RPM
Bead Breaker Force: 6,924 lbs
Air Requirement: 120–145 PSI
Operating Voltage: 110V
Shipping Weight: 795 lbs
Tilt-Back Pneumatic Column
Italian Engineered Components
Wheel Balancer PWB90XL Specifications:
Max Tire Diameter: 43"
Rim Sizes (Cars & Light Trucks): 10"–30"
Rim Width: 1 1/2"–20"
Shaft Size: 40mm
Max Wheel Weight: 165 lbs.
Balancing Speed: 130 rpm
Data Entry: Super Automatic 3D
Measurements: Standard or Metric
Accuracy: 1 gram
Weight Position Resolution: 1.4 degrees
Self Calibration: Yes
Cycle Time: 7 seconds
Power Supply: 110V
Shipping Weight: 290 lbs.
Platinum PTC600 Tire Changer Special Features
Tilt-back rim clamp design for safer, easier operation
Right-hand assist arm for pressing and bead rolling
Air-operated jaws and bead breaker
High-torque 110V electric turntable
Metal mount/demount head with replaceable plastic inserts
Column-mounted inflator box with pressure gauge
Built-in bead blaster for fast seating
Filter/Regulator/Lubricator (FRL) included
Tire tool, lube bucket, and brush included
Large plastic jaw protectors included
Bead breaker shovel plastic cover included
Replacement plastic inserts included
Replacement parts always in stock

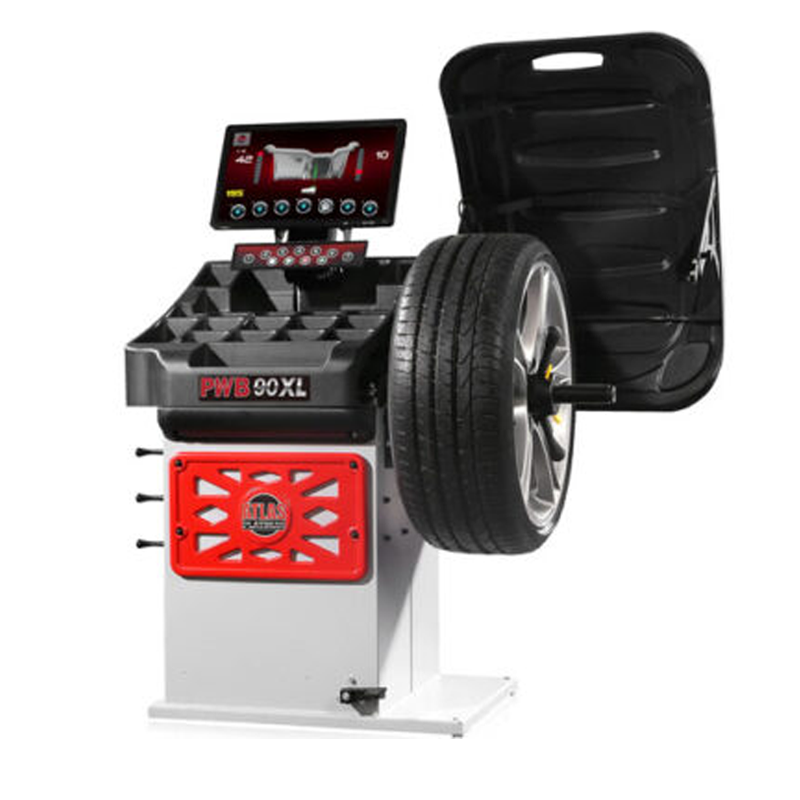

PWB90XL Wheel Balancer – Special Features:
Platinum 3D video motorized spin balancer
Italian engineering and premium components
High-resolution video monitor display
Super Automatic 3D data entry with touchless sonar for rim width
Laser line for precise weight placement
LED light to illuminate the wheel interior
Static and dynamic balancing modes
Optimatch, FES (Split), and OPF (Opposite Position) functions
Special ALU-S and multiple ALU balancing programs
NWN (No Wheel Needed) system
Self-diagnosing and self-calibrating capability
USB hub for firmware updates via PC or laptop
Exceptional accuracy in reading unbalance between planes
Measurement display in grams/ounces and mm/inches
No anchor-down installation required
Includes: plastic quick-release nut, 4 centering cones, wheel weight pliers, and measuring calipers
Replacement parts and wear items always in stock
2-year parts-only warranty
Optional (sold separately): Truck Adapter Set
PTC600 + PWB90XL Manual
Tire Changer and Wheel Balancer Optional Item (Sold Separately)
