Atlas Apex 9, 9,000 lb 4 Post Lift with (2) RJ45A Rolling Jack Combo
Apex 9 9,000 lb Combo
Atlas Apex 9 9,000 lb 4-Post Lift is the ultimate solution for vehicle storage and repair. Designed for heavy-duty work, this lift offers an impressive 9,000 lb capacity, with features that elevate your service game to new heights. It’s wide enough for trucks and SUVs, with a lifting height of 86" (7' 2") and a clearance of 81 1/4" (6' 9 1/4") under the runways. Featuring diamond-plated runways, a single-point lock release, and a ladder lock safety system, the Apex 9 ensures stability and safety while you work.
The RJ45A 4,500 lb Capacity Air/Hydraulic Rolling Bridge Jack complements the Apex 9 with smooth air/hydraulic operation, making it the perfect accessory for lifting vehicles off the runways for servicing tires, brakes, and more. It’s designed to fit 9,000 lb lifts, offering effortless lifting with a scissor mechanism for level lifting.
Together, the Apex 9 4-Post Lift and RJ45A Rolling Bridge Jack create the ideal setup for professional automotive shops and home garages that demand precision and durability.
Atlas 9000 lb Lift Specifications:
Capacity: 9000 lbs
Lifting Height, Top of Runway: 86" (7' 2")
Clearance Under Runways: 81 1/4" (6' 9 1/4")
Height of Columns: 99" (8' 3")
Overall Width: 121 7/8" (10' 1 7/8") w/ motor 133 7/8" (11' 1 7/8")
Overall Length w/ Ramps: 227 1/2" (18' 11 1/2")
Runway Length: 196 1/2" (16' 4 1/2")
Runway Width: 20 1/8"
Runway Thickness: 4 3/4"
Width Between Runways: 38 7/8" w/ Rail 34 3/4"
Outside Runway to Outside Runway: 79" (6' 7")
Clearance Between Columns: 108 1/8" (9' 1/8")
Length Between Columns: 184 1/4" (15' 4 1/4")
Drive Thru: 98 5/8" (8' 2 5/8")
Motor/Electrical Requirement: 110volt, 30 amp breaker required
Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
Concrete Requirements: Minimum of 6"-3000PSI
Shipping Weight: 2975 lbs
Pallet Size: 204" Long x 30-1/2" Tall x 25" Wide
Rolling Jack RJ45A Specification:
Capacity: 4,500 lbs
Minimum Width (Roller Arms): 36"
Maximum Width (Roller Arms): 54"
Lift Arm Width (Center of Pad): 30" - 60 1/2"
Air Requirement: 70-115 PSI
Shipping Weight: 380 lbs
Arm Hole/Adapter Peg Size: 1 1/2"
Adapter Heights: 2 Each 1 1/4", 5"
Apex9 9,000 lb 4 Post Vehicle Storage Lift Special Features:
ALI Certified Unit
Heavy Duty
Extra Tall, Extra Wide and Extra Long
Design Free Standing & Portable
Diamond Plated Runways
Powder Coat Unit
Lock Release: Single-Point
Lock Design Lock Ladder w/ Double Lock Safety System
Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only
110volt Electric Operation (Requires 30amp Breaker)
Unit Includes:
Steel Approach Ramps Included
Steel Jack Tray Included
4 Plastic Drip Trays
2 Rubber Wheel Chocks
RJ45A 4500 lb. Rolling Jack Special Features:
4,500 lb Capacity for lifting heavy vehicles
Air/Hydraulic Operation (External air supply not included)
Multiple Safety Lock Positions for secure lifting
Compact Size with Low Profile for better space management

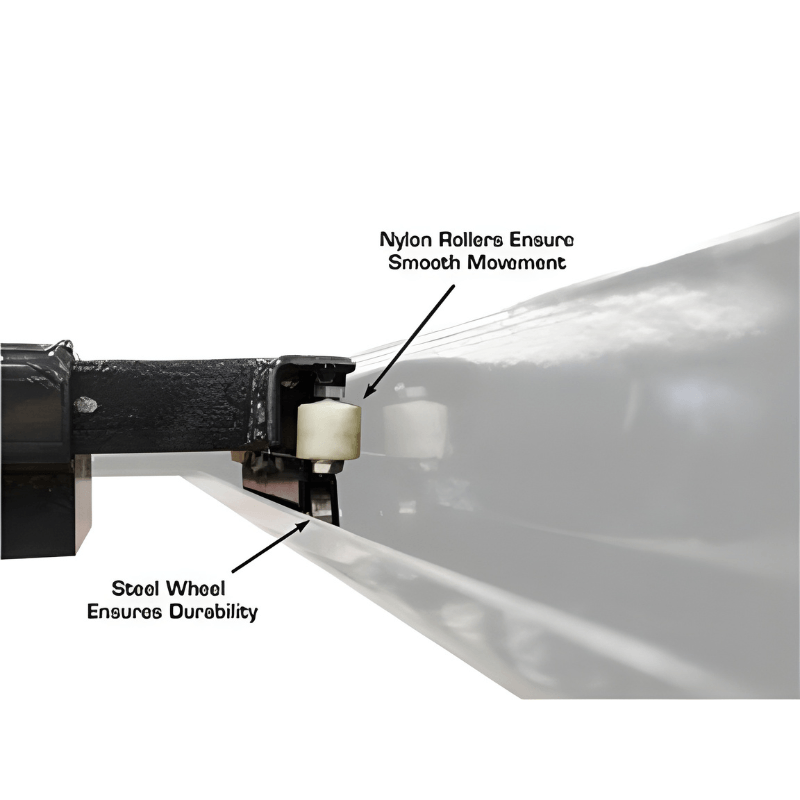

Smooth Rolling Action for easy positioning on the lift
Scissor Mechanism allows for level lifting
4-Piece Truck Adapter Set Included for lifting larger vehicles
1 Year Parts Only Warranty for peace of mind
Efficient Lifting for tire, brake, and component servicing
Apex 9 and RJ45A Manual
Atlas Apex 9 4 Post Vehicle Storage Lifts Product Manual
Atlas Apex 9, 4 Post Lift with Two RJ45A Rolling Jack Combo Optional Item Sold Separately
